Optimizing Port Material Handling Operations: Practical Upgrades and Strategic Trade-Offs

Practical Upgrades and Strategic Trade-Offs

Ports involved in the export of bulk materials, particularly ores and concentrates, face increasing pressure to operate with higher reliability, lower costs, and tighter control over product quality. As infrastructure ages and production demands grow, engineering-driven improvements in material handling systems become essential, not just for throughput, but also for long-term structural safety, operability, and compliance with environmental and commercial standards.

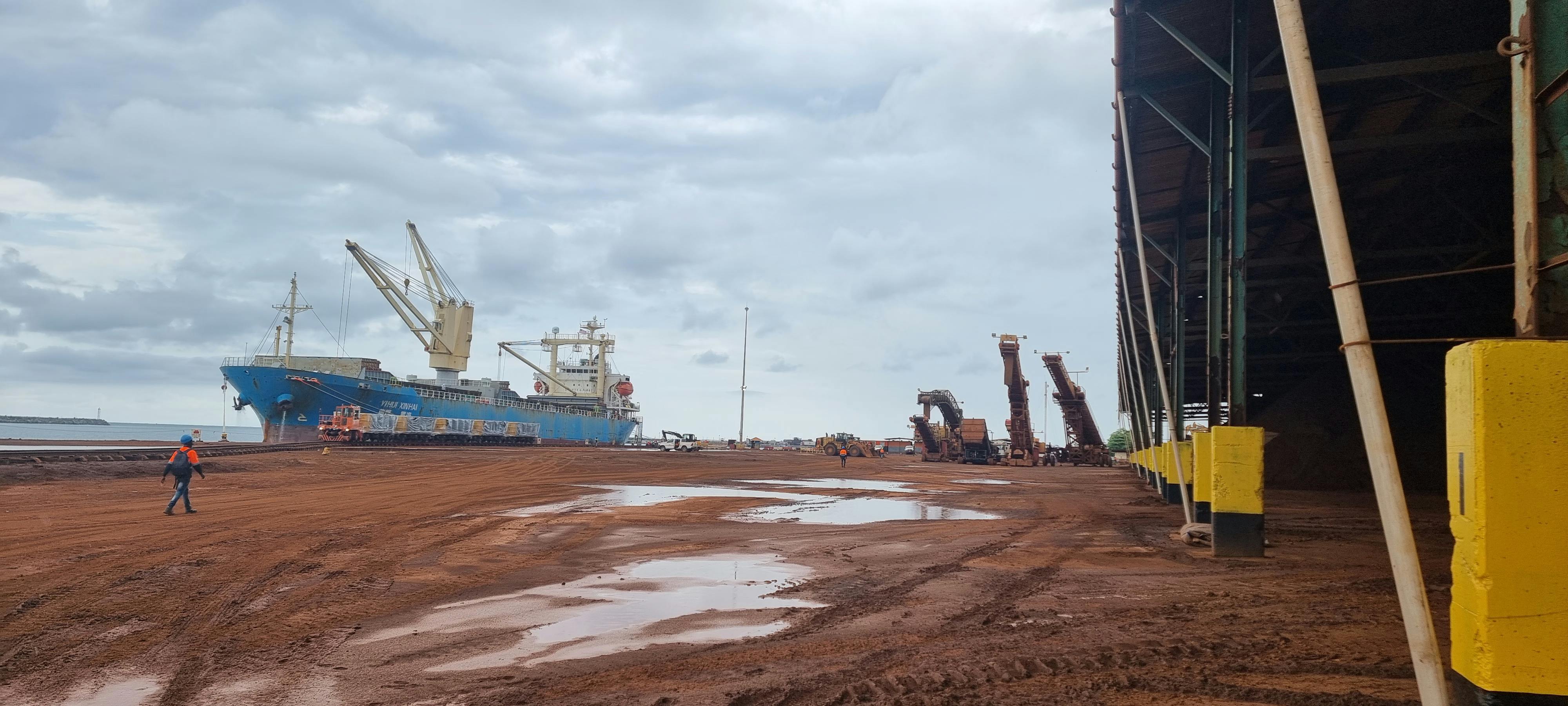

Recently, +NR conducted a comprehensive survey and assessment at a bulk export port in Liberia - Africa, focusing on identifying opportunities for operational improvements. The port, which handles significant volumes of ores and concentrates, faces typical challenges related to aging infrastructure, increasing production demands, and the need for cost-efficient, reliable operations.

At +NR, we specialize in diagnosing and reengineering port-based handling systems, applying an integrated approach that combines multidisciplinary engineering and operational perspectives to maximize overall system performance.

Key Areas for Operational Improvement in Port Terminals

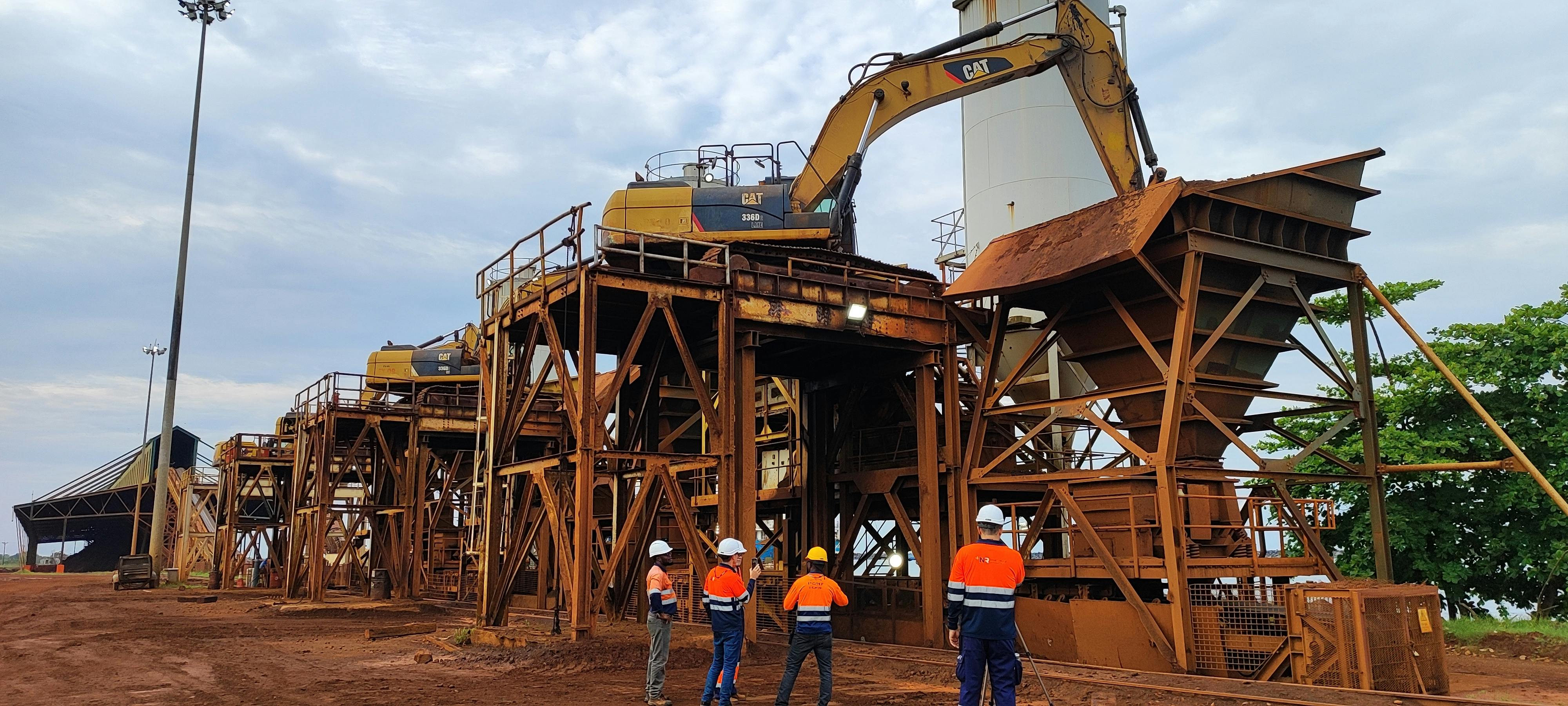

1. Railcar Unloading and Transfer Efficiency

Efficient railcar unloading and material transfer are crucial for maintaining high throughput and minimizing operational delays in port terminals. However, common challenges such as bin geometry limitations, suboptimal vibration systems, and poor feeder design can significantly hinder the smooth flow of bulk materials, leading to frequent material hang-ups, inconsistent discharge rates, and increased humidity retention within the stored material.

One of the most common issues is related to the geometry of the unloading bins. Bins with inadequate wall angles, especially those with shallow or irregular shapes, often cause materials, particularly wet or cohesive ores, to accumulate, forming arches or ratholes that block the flow. This is especially problematic in environments where moisture levels fluctuate, as wet material tends to adhere to rough surfaces and settle unevenly.

Another contributing factor is the vibration system itself. Vibrating feeders with improper alignment, worn springs, or inconsistent motor performance fail to provide the necessary agitation, resulting in material stagnation. Moreover, feeder angles that are too flat or positioned incorrectly relative to the hopper chute can further restrict flow, exacerbating clogging and causing the material to compact rather than move freely.

To address these challenges, +NR recommends implementing a combination of geometric adjustments and mechanical upgrades, tailored to the specific material and operational context.

• Optimizing Wall Angles: Increasing the sidewall slope to a more acute angle (typically between 60° and 70°) helps gravity assist the flow, particularly when handling sticky or wet materials. Implementing conical or pyramidal transitions between the hopper and feeder can also promote smoother discharge.
• Incorporating Plastic Liners: Coating the bin interior with low-friction, wear-resistant plastic liners can significantly reduce material adhesion. These liners not only enhance flow but also protect the bin structure from abrasive wear, reducing maintenance frequency.
• Adjusting Feeder Angles: Modifying the feeder inclination to better match the material’s flow characteristics (usually between 5° and 15°) can help maintain continuous movement. Additionally, using a stepped feeder design can distribute vibrations more evenly, minimizing compaction.
• Upgrading Vibration Systems: Installing high-efficiency vibratory motors with adjustable frequency settings ensures that the vibration is fine-tuned to the material’s properties. Enhanced spring systems, designed to absorb shock while maintaining consistent vibration amplitude, further improve reliability.

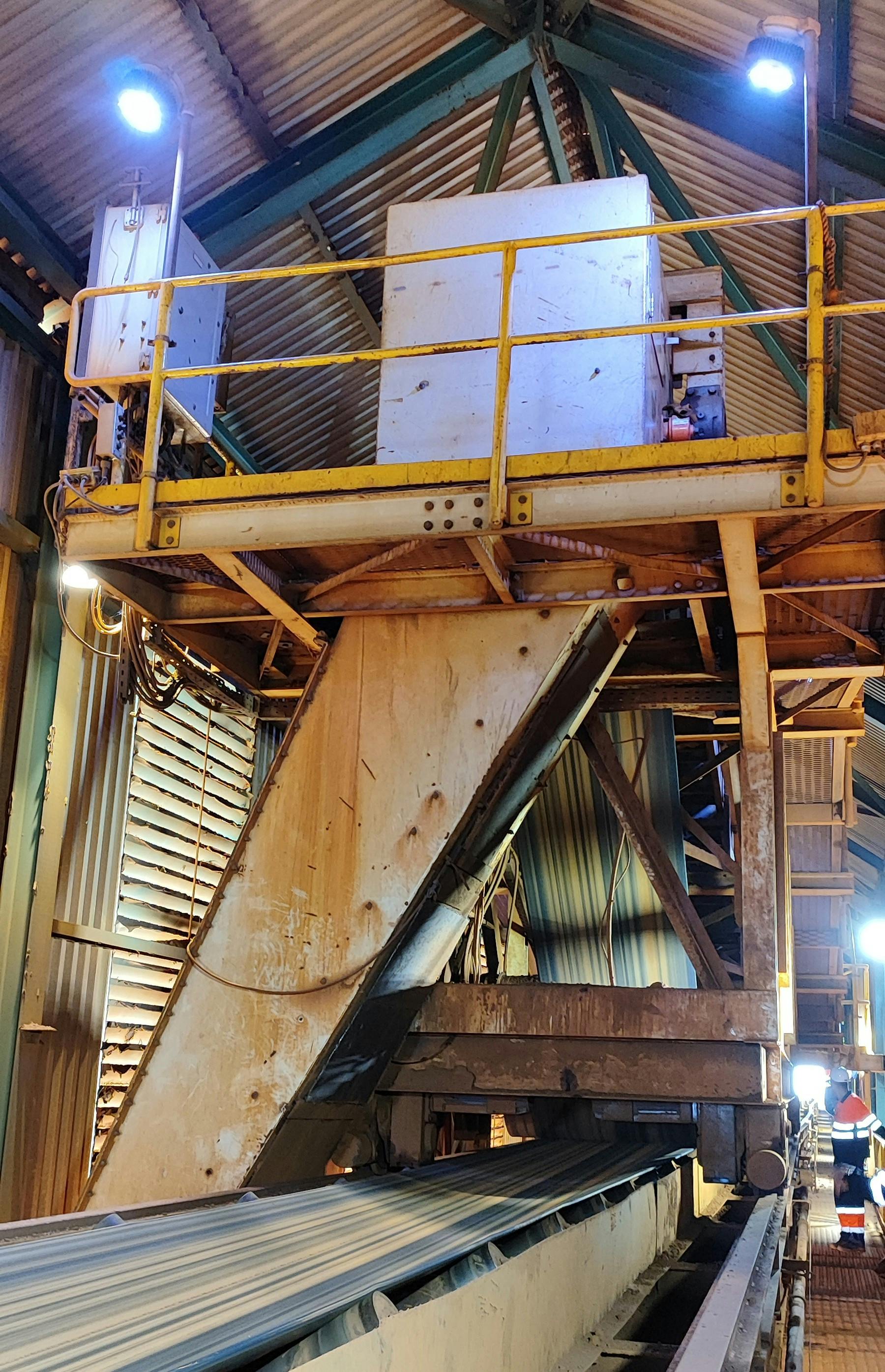

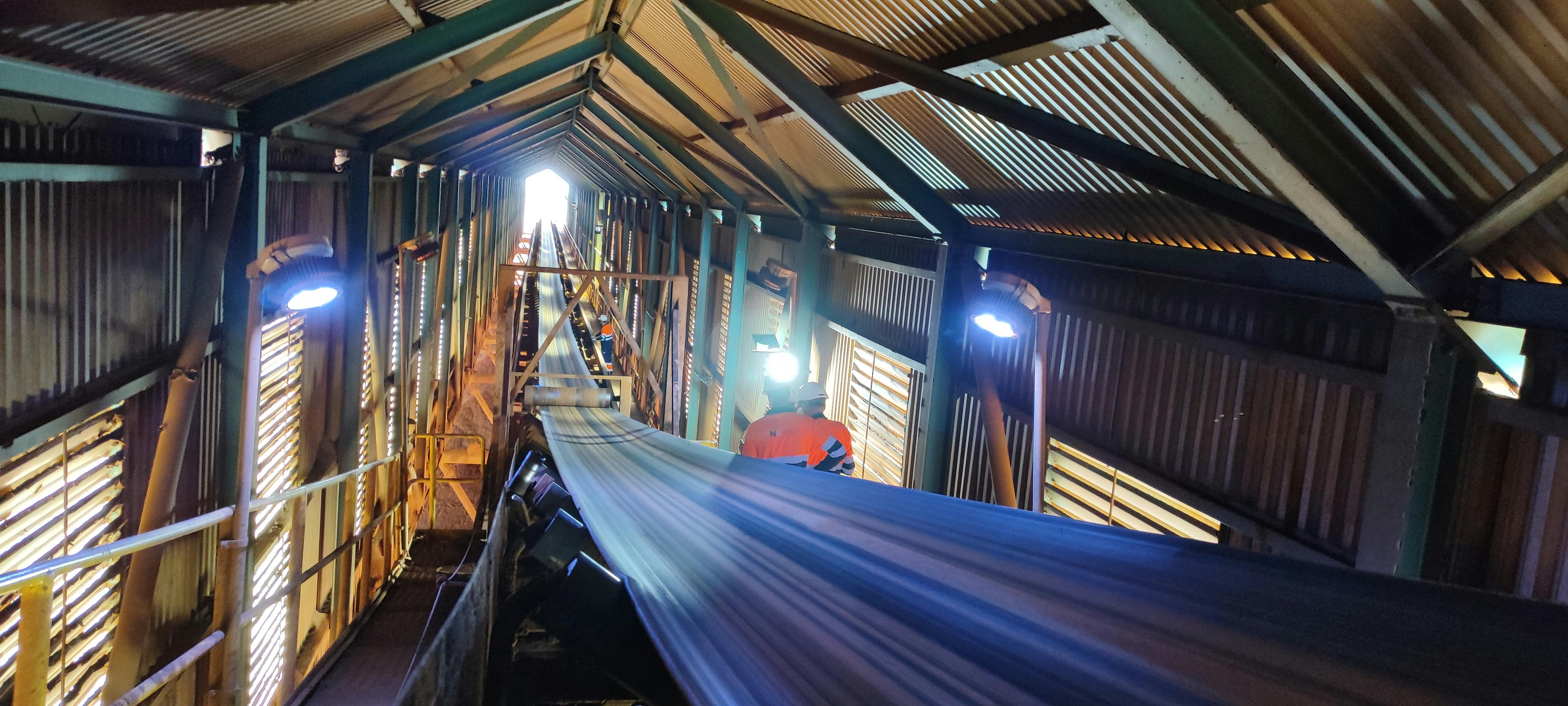

2. Conveyor Systems and Tripper Cars

Conveyors in port environments often face challenging conditions such as misalignment, fixed tension systems, insufficient return idler support, and aging belt materials. These issues can lead to increased wear, frequent maintenance, and reduced throughput.

+NR addresses these challenges by conducting advanced belt tension analysis, dynamic loading calculations, and alignment diagnostics to develop tailored retrofit packages. We also perform trade-off evaluations to determine the best technical solutions, comparing options such as fabric vs. steel cord belts for durability, fixed vs. counterweight take-ups for tension management, and rubber vs. ceramic lagging to optimize friction and wear resistance.

By quantifying the benefits of each option in terms of cost, maintenance needs, and long-term reliability, we ensure that our solutions enhance operational efficiency while minimizing downtime and maintenance costs.

3. Structural Safety and Stockpile Management

Structural failures in port facilities often arise not from inherent design flaws but from operational deviations, such as incorrect stockpile loading and unplanned equipment interactions. These issues can lead to uneven load distribution, excessive stress on support structures, and potential structural deformation or failure.

To address these challenges, +NR implements a comprehensive strategy combining structural analysis, practical modifications, and enhanced monitoring systems:

Structural Modeling and Load Verification:

• We employ finite element analysis (FEA) to model the structural behavior of port facilities, considering critical factors like load distribution from stockpile accumulation and impact from handling equipment.
• In our calculations, we incorporate wind load as a static pressure factor rather than dynamic simulation, ensuring that the structural design accommodates maximum wind pressure typical for the region. This conservative approach guarantees safety without overestimating wind effects.
• We also analyze load path continuity to ensure that forces are correctly transferred from the roof through the support columns to the foundation, maintaining stability even during high loading conditions.

Foundation Design and Stability:

• Our foundation solutions consider the bearing capacity of the soil, ensuring that even under maximum stockpile load, the base remains stable and uniform.
• Reinforced concrete foundations with anti-settlement measures are used to counteract the effects of heavy ore accumulation and vehicle movement within the storage shed.
• Where existing foundations show signs of stress or settlement, we recommend geotechnical reinforcement, such as geogrids or pile extensions, to improve load distribution.

Operational Controls and Protection Systems:

• Camera Monitoring and Automation: Installing CCTV systems with coverage throughout the stockpile area ensures that loading practices are continuously monitored, helping operators adhere to loading protocols.
• Automated Rain Protection: Rain infiltration significantly increases the moisture content of stockpiled ore, impacting product quality and increasing handling difficulties. We recommend installing automated rain shields or retractable covers that activate based on weather conditions. This automation minimizes human error and ensures consistent protection.
• Column Protection: In facilities where vehicles frequently move within the storage area, there is a high risk of accidental collisions with structural columns. Installing bumper bars or shock-absorbing guards around critical supports mitigates impact forces, preserving structural integrity and reducing maintenance costs.
• Loading Control Regimes: Automated systems linked to the CCTV feed can issue warnings or alerts if loading limits are exceeded, preventing overload and structural stress.

Enhanced Safety Measures:

• Incorporating clear signage and physical barriers around sensitive structural areas helps direct vehicle flow and prevents accidental impacts.
• Implementing real-time load monitoring via sensors at critical junctions helps detect load shifts or unusual stress patterns, enabling proactive maintenance.

4. Humidity Control and Ore Quality Preservation

Maintaining optimal moisture levels in bulk ores during storage and transportation is critical for preserving product quality and minimizing shipping penalties. Increased ore moisture during rail and port storage can significantly impact shipping costs, handling efficiency, and final product value. This challenge becomes even more pronounced in coastal and tropical environments, where humidity and precipitation are persistent concerns.

Engineering Approach to Humidity Mitigation

+NR applies a comprehensive strategy to monitor, control, and reduce ore moisture throughout the logistics chain, from rail unloading to vessel loading. Our approach includes:

Source-to-Vessel Humidity Audits:

• We conduct detailed assessments of moisture accumulation at every stage of the logistics process, identifying key points where exposure to rain, condensation, or ambient humidity is most critical.
• Our audits include environmental data analysis, such as rainfall patterns, wind direction, and relative humidity, to accurately assess the risk level and seasonal variations.

Mitigation Strategies:

• Weather Shielding Systems: Installing fixed or retractable roof systems over critical handling areas can protect ores from direct rainfall without hindering operational flow. These systems are particularly useful in loading bays, conveyor transfer points, and storage sheds.
• Automated Wagon Covers: To control moisture during rail transport, we recommend automated covers that deploy as soon as unloading or loading is complete. These covers are designed to withstand wind loads and mechanical wear, ensuring long-term durability.
• Modular Shed Extensions: In open stockpile areas, modular shed extensions or lightweight side enclosures can provide significant protection without compromising ventilation. These extensions are designed to balance CAPEX, structural stability, and ease of installation.
• Hybrid Curtain Systems: For partially covered areas, hybrid curtains made of reinforced synthetic fabric can block lateral rain intrusion while allowing air circulation, reducing condensation risks.

Implementing robust humidity control measures requires a balance between operational flexibility and long-term effectiveness. While fixed structures offer maximum protection, they may hinder rapid loading and unloading. On the other hand, lightweight and modular solutions offer adaptability but may require more frequent maintenance.

5. Maintenance Access and Operational Safety

In port operations, downtime is often not the result of major equipment failures, but rather the inaccessibility of critical components. Routine maintenance tasks, such as replacing return idlers, worn liners, or faulty motors, become significantly more time-consuming and hazardous when the equipment is difficult to access. This lack of accessibility not only increases maintenance costs but also leads to unplanned shutdowns, directly impacting throughput and operational efficiency.

+NR addresses these challenges through the development of modular retrofit solutions specifically designed to enhance accessibility while maintaining safety standards. Our approach includes:

Modular and Retractable Idler Systems:

• Problem: Traditional conveyor systems often require partial dismantling to access return idlers, resulting in significant downtime.
• Solution: We design and install retractable idler frames that allow quick removal and replacement without disassembling large sections of the conveyor. These frames are equipped with sliding mechanisms and locking pins, ensuring both accessibility and operational safety.
• Benefit: Reduced maintenance time by up to 50%, minimized risk of injuries, and increased conveyor availability.

Maintenance Platforms and Safe Access Points:

• Problem: Many handling systems, especially those with elevated conveyors and overhead structures, lack proper maintenance platforms, forcing workers to perform tasks at height without adequate support.
• Solution: We install permanent and retractable platforms equipped with guardrails, safety harness attachment points, and non-slip surfaces. Platforms are designed to be compact and modular, allowing quick installation in confined areas.
• Benefit: Increased worker safety, compliance with HSE regulations, and more efficient maintenance routines.

Safe Liner Replacement Kits:

• Problem: Replacing liners in hoppers or chutes often requires complete shutdowns and manual handling, increasing the risk of injuries.
• Solution: We develop liner replacement kits that include pre-cut modular panels and quick-release fastening systems. These kits reduce the need for heavy lifting and allow liner changes without full equipment disassembly.
• Benefit: Faster liner replacement, improved worker safety, and less exposure to abrasive materials.

Our maintenance solutions are not just about improving accessibility but also about ensuring safety during interventions. By incorporating modular designs, safe access points, and efficient replacement kits, we help port operators minimize downtime and protect workers from common hazards associated with maintenance tasks.

Trade-Off Analysis: A Key Tool for Better Decision-Making

Every port operation has unique constraints, budget, time, layout, logistics, and the best technical solution is not always the most expensive. That’s why +NR places strong emphasis on trade-off studies, where multiple options are developed and compared across the dimensions of:

• Implementation cost and complexity
• Impact on throughput and reliability
• Maintenance burden
• Shutdown duration
• Structural or environmental risk

This approach ensures decision-makers have clear visibility on ROI and technical feasibility, empowering them to select the most effective solution, not just in theory, but in practice.

From Concept to Commissioning

+NR supports port operators and EPCs from early diagnostics through implementation, offering:

• Feasibility and trade-off studies
• Detailed engineering and layout optimization
• Structural assessments and retrofits
• Procurement and supplier interface
• On-site engineering support for installation and ramp-up

We understand the criticality of maintaining operations during upgrades, and we specialize in phased implementation strategies that reduce impact to shipping schedules and avoid throughput bottlenecks.

Let us help you unlock more value from your port systems. Whether you're facing corrosion, capacity constraints, or the need to modernize material flow infrastructure, +NR delivers the technical clarity and field-proven solutions to elevate your operations.
